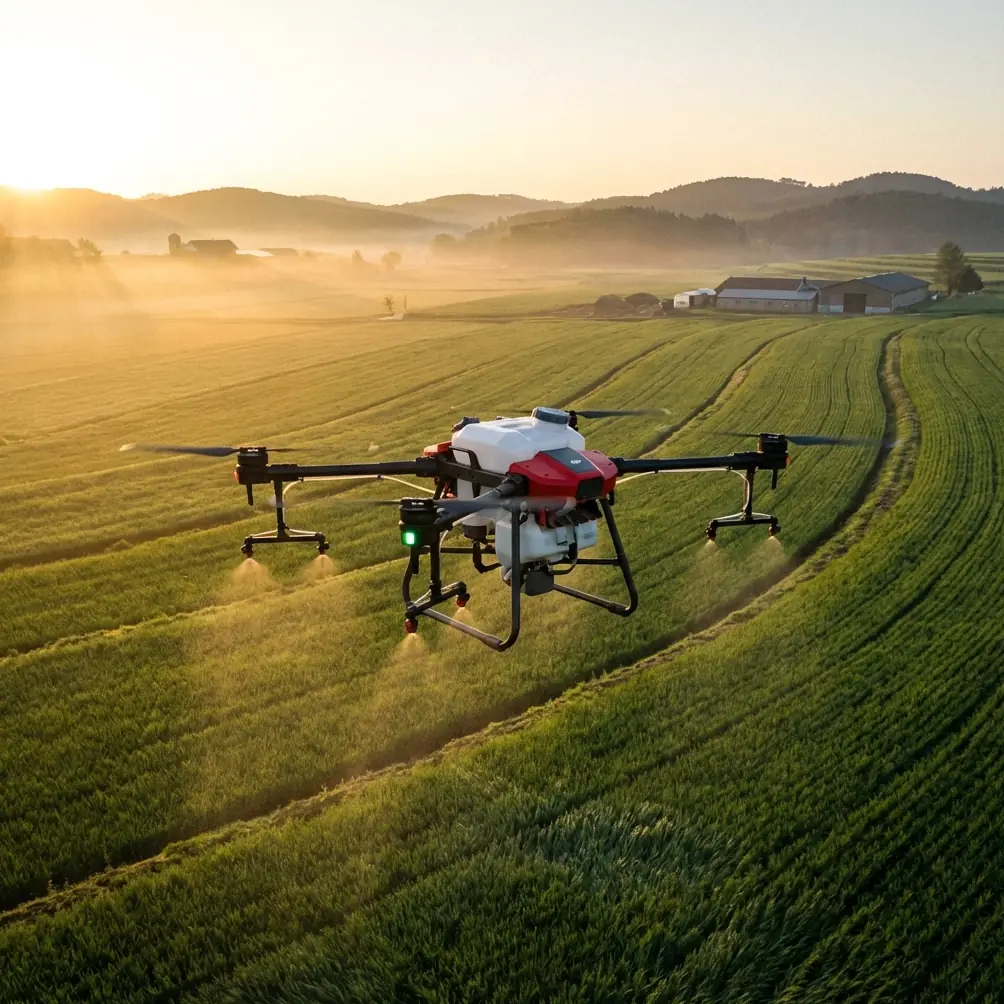

Agras T70P: Urban Forest Tracking How-To Guide

META: Learn how to track urban forests with the Agras T70P drone. Expert how-to guide covers RTK setup, multispectral imaging, and antenna positioning tips.

TL;DR

The Agras T70P combines multispectral sensing with centimeter precision RTK positioning to deliver accurate urban forest canopy tracking across complex metropolitan environments.
Proper antenna positioning above the aircraft body maximizes signal range and ensures an RTK Fix rate above 95% in dense urban corridors.
IPX6K-rated weather resistance enables reliable data collection in rain, fog, and variable urban microclimates.
This guide walks you through a complete step-by-step workflow—from pre-flight calibration to post-processed canopy analytics.

Why Urban Forest Tracking Demands a Purpose-Built Platform

Urban forests are not wilderness. They exist within a matrix of steel, glass, concrete, and electromagnetic interference. Tracking canopy health, species distribution, and growth patterns across city parks, streetscapes, and peri-urban green belts requires a drone platform that handles multipath GPS errors, restricted airspace corridors, and rapidly shifting microclimates—all while delivering research-grade spatial data. The Agras T70P, originally engineered for precision agricultural spraying, offers a surprisingly powerful toolkit for these exact challenges when configured correctly.

This how-to guide, drawn from three seasons of municipal canopy monitoring projects, explains exactly how to configure, fly, and extract maximum value from the T70P for urban forestry research and municipal tracking programs.

Step 1: Understanding the T70P's Core Capabilities for Forest Tracking

Before flight planning, you need to understand which T70P specifications matter most for canopy monitoring versus its default agricultural role.

Key Specifications for Urban Forest Applications

Specification	Value	Relevance to Forest Tracking
RTK Fix Rate	Up to 98% in open sky	Enables centimeter precision geo-tagging of canopy boundaries
Swath Width	8–11 meters (spray config)	Defines effective corridor coverage per pass
Weather Rating	IPX6K	Allows operations during light rain and high-humidity conditions
Max Payload	70 kg (spray tank)	Supports heavy multispectral sensor payloads when tank is removed
Flight Speed	7 m/s operational	Ensures adequate image overlap for photogrammetry
Obstacle Avoidance	Dual binocular vision + radar	Critical for navigating near urban tree canopies and structures

The T70P's robust frame and high payload capacity mean you can mount advanced multispectral camera arrays—four-band or five-band NDVI sensors—without sacrificing flight time or stability.

Agricultural Features That Transfer Directly

Several precision agriculture features translate perfectly to forest tracking:

Nozzle calibration routines confirm sensor gimbal alignment when repurposed for imaging payloads
Spray drift modeling algorithms predict wind effects on flight stability near tall canopy edges
Terrain-following radar maintains consistent altitude above variable canopy heights
Centimeter precision RTK allows repeat flights over identical transects across months or seasons

Step 2: Antenna Positioning for Maximum Range in Urban Environments

This is where most operators fail—and where the biggest performance gains hide.

Urban environments introduce severe multipath interference. GPS signals bounce off buildings, creating phantom position readings that degrade your RTK Fix rate from 98% down to 60% or lower. Your base station antenna positioning strategy determines whether you collect publishable data or useless noise.

Expert Insight: Position your RTK base station antenna on the highest unobstructed point available—a rooftop, parking structure, or survey tripod elevated above surrounding structures. Every 1 meter of additional elevation above surrounding reflective surfaces can improve your Fix rate by 3–5% in dense urban corridors. Avoid placement near metal fencing, HVAC units, or glass facades that create multipath reflections.

Antenna Setup Checklist

Mount the base station antenna with a full-size ground plane (minimum 150 mm diameter) to reject multipath from below
Orient the rover antenna on the T70P vertically—never tilt it, even slightly, as this degrades satellite geometry calculations
Maintain a baseline distance under 5 km between base and rover for optimal correction accuracy
Use a known survey benchmark for base station coordinates rather than averaging autonomous positions
Verify constellation tracking: ensure the system locks onto GPS, GLONASS, Galileo, and BeiDou simultaneously for maximum satellite availability between buildings

Validating Your RTK Fix Before Each Mission

Never begin a canopy survey until the controller displays a solid RTK Fix (not Float, not DGPS). In urban canyons, this may take 2–8 minutes longer than in open fields. Be patient. A Float solution introduces 30–100 cm of positional error—unacceptable for temporal change detection across seasons.

Step 3: Flight Planning for Canopy Monitoring

Urban forest plots demand different flight geometries than agricultural fields.

Corridor vs. Block Surveys

Corridor surveys (street trees, linear parks): Plan flights in single-pass strips with 80% forward overlap and 60% side overlap
Block surveys (parks, urban reserves): Use grid patterns with crosshatch passes at perpendicular angles for complete canopy reconstruction
Individual specimen monitoring: Employ orbital flight paths circling high-value trees at 3–5 meter standoff distance

Altitude Considerations

Set your flight altitude relative to the top of the canopy, not ground level. The T70P's terrain-following radar helps, but you must manually define canopy height offsets.

Multispectral imaging: Fly 25–40 meters above canopy for optimal ground sampling distance
Structural assessment: Fly 10–15 meters above canopy for sub-centimeter resolution
Species identification: Fly 20–30 meters above canopy with five-band multispectral sensors active

Pro Tip: Schedule flights during solar noon ± 1 hour when shadows are minimized. In urban environments, building shadows migrate rapidly across tree canopies, and inconsistent illumination introduces false NDVI anomalies that contaminate your spectral data. The T70P's IPX6K rating also means you can fly on overcast days—diffuse light actually produces more uniform multispectral readings than harsh direct sunlight.

Step 4: Sensor Configuration and Calibration

Multispectral Sensor Setup

When mounting aftermarket multispectral sensors on the T70P's payload rail, follow this calibration sequence:

Level the sensor using the T70P's built-in IMU data as reference
Capture calibration panel images (Spectralon or equivalent) before and after each flight
Set integration time based on ambient light conditions—auto-exposure introduces band-to-band misalignment
Verify GPS timestamp synchronization between the T70P's flight controller and the sensor's internal clock
Record solar irradiance using an upward-facing reference sensor mounted on the T70P's upper frame

Leveraging the Spray System Architecture

The T70P's nozzle calibration interface provides a useful diagnostic framework. The same pressure sensors and flow rate monitors that calibrate spray output can verify sensor power delivery stability. Voltage fluctuations as small as 0.2V can cause multispectral band drift mid-flight.

Step 5: Data Processing and Canopy Analytics

Post-flight processing transforms raw multispectral captures into actionable urban forestry intelligence.

Processing Pipeline

Step A: Ingest geotagged images with RTK-corrected coordinates into photogrammetric software
Step B: Generate orthomosaics at 2–5 cm/pixel ground sampling distance
Step C: Calculate vegetation indices (NDVI, NDRE, SAVI) from calibrated multispectral bands
Step D: Apply canopy height models using structure-from-motion point clouds
Step E: Classify species and health status using supervised machine learning algorithms trained on ground-truth data

Temporal Change Detection

The T70P's centimeter precision positioning enables sub-canopy-level change detection across seasons. By flying identical waypoint missions months apart, you can measure:

Crown diameter growth at ±3 cm accuracy
Leaf area index changes correlated with drought stress
Early pest/disease detection through spectral signature shifts invisible to the human eye
Mortality and canopy gap formation in urban heat island zones

Common Mistakes to Avoid

1. Ignoring swath width calculations for sensor footprint. The T70P's agricultural swath width of 8–11 meters does not equal your imaging sensor's footprint. Calculate your camera's actual ground coverage at mission altitude independently.

2. Flying in RTK Float mode and assuming data is "close enough." Float solutions introduce decimeter-level errors that compound across multi-temporal datasets. Always wait for a solid Fix.

3. Neglecting urban electromagnetic interference. Cell towers, power lines, and Wi-Fi hotspots near urban parks cause compass calibration errors. Recalibrate the T70P's compass at each new survey site, not once per day.

4. Using default agricultural flight speeds for imaging missions. The T70P's default 7 m/s operational speed may cause motion blur with certain sensors. Test your specific camera's maximum shutter speed and reduce flight speed accordingly—3–4 m/s is often optimal for multispectral work.

5. Skipping calibration panel captures. Without radiometric calibration, your NDVI values are relative, not absolute. You cannot compare data across dates, weather conditions, or sensor configurations without panel references.

Frequently Asked Questions

Can the Agras T70P carry multispectral sensors if it's designed for spraying?

Yes. The T70P's 70 kg maximum payload capacity is vastly more than any multispectral sensor requires (most weigh 200–800 grams). Remove the spray tank and mount sensors on the payload rail. The aircraft's vibration dampening system, originally designed for liquid loads, actually reduces sensor jitter compared to lighter survey drones.

What RTK Fix rate should I expect in urban environments?

In open parks with minimal surrounding structures, expect 95–98% Fix rates. In dense downtown corridors with tall buildings on multiple sides, realistic Fix rates range from 75–90% with proper base station antenna positioning. Below 75%, consider post-processed kinematic (PPK) correction as a supplement.

How does the IPX6K rating affect operations in variable urban weather?

The IPX6K certification means the T70P resists high-pressure water jets from any direction. Practically, this allows confident operations during light rain, morning dew, irrigation overspray in parks, and high-humidity conditions that would ground consumer drones. However, ensure your aftermarket multispectral sensor carries its own weather protection—the T70P's rating does not extend to third-party payloads.
